5 inch touchscreen ips mipi dsi display IPS1920x1080

Name: 5 inch touchscreen ips mipi dsi display IPS1920x1080
Brand: Heng Cheng Electronics Technology (HK) Co.,Ltd
SKU: HC050IV60016-B17 V.C
Availability: InStock

جزئیات محصول

Place of Origin: China

نام تجاری: HETECH

گواهی: ISO9001,ISO14001,ISO13485,IATF16949

Model Number: HC050IV60016-B17 V.C

شرایط پرداخت و حمل و نقل

Minimum Order Quantity: 100pcs

Delivery Time: 4-6weeks

Payment Terms: T/T

Supply Ability: 50K/month

بهترین قیمت رو بدست بیار

جزئیات محصول

توضیحات محصول

برجسته کردن:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                5 inch IPS touchscreen display,5 inch TFT LCD screen,MIPI DSI display 1920x1080, 5 inch TFT LCD screen, MIPI DSI display 1920x1080


P/NHC050IV60016-B17 V.C:	HC050IV60016-B17 V.C	Size:	5"(IPS)
Display type:	(IPS)	Resolution:	1080*1920
Outline dimension:	64.5(W )117.7(H)1.6(T)mm	Active area:	61.641(W)*109.584(H)mm
Brightness:	600cd/m2	Interface:	34pinMIPI
Viewing angle:	80/80/80/80	Operation Temp.:	-20~60℃
Storage Temp.:	-30~70℃	Contrast ratio:	1000
Aspect rati16:9o:	9:16	Application:	electric cars and motorcycle dashboards

P/NHC050IV60016-B17 V.C:	HC050IV60016-B17 V.C
Size:	5"(IPS)
Display type:	(IPS)
Resolution:	1080*1920
Outline dimension:	64.5(W )117.7(H)1.6(T)mm
Active area:	61.641(W)*109.584(H)mm
Brightness:	600cd/m2
Interface:	34pinMIPI
Viewing angle:	80/80/80/80
Operation Temp.:	-20~60℃
Storage Temp.:	-30~70℃
Contrast ratio:	1000
Aspect rati16:9o:	9:16
Application:	electric cars and motorcycle dashboards

5 inch touchscreen ips mipi dsi display IPS1920x1080

5 inch Touchscreen IPS MIPI DSI Display IPS1920x1080

Product Specifications

Part Number	HC050IV60016-B17 V.C
Size	5" (IPS)
Display Type	IPS
Resolution	1080 × 1920
Outline Dimension	64.5(W) × 117.7(H) × 1.6(T) mm
Active Area	61.641(W) × 109.584(H) mm
Brightness	600 cd/m²
Interface	34 pin MIPI
Viewing Angle	80/80/80/80
Operation Temperature	-20~60℃
Storage Temperature	-30~70℃
Contrast Ratio	1000:1
Aspect Ratio	9:16
Application	Electric cars and motorcycle dashboards

Product Description

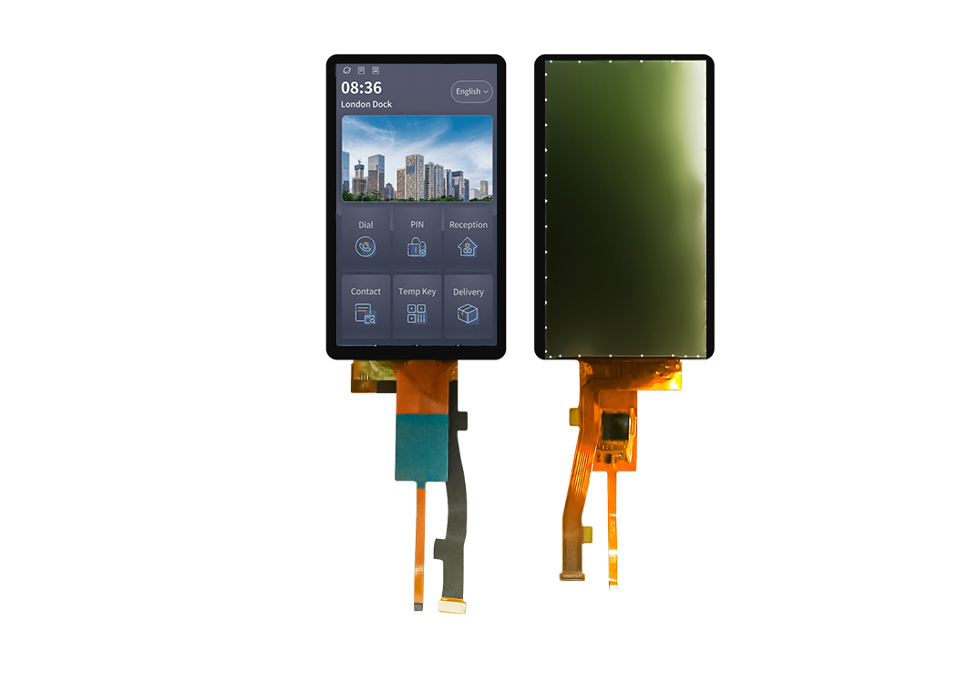

HC050IV60016-B17 V.C is a 5-inch TFT module with a capacitive touch panel and 34-pin MIPI interface for smooth integration. With IPS technology, this display provides ultra-wide viewing angles and accurate color representation.

Featuring 1080×1920 pixel resolution on a 61.64×109.58mm screen with 80° viewing angles from all perspectives, this module delivers a remarkable viewing experience. The 1000:1 contrast ratio and 600-nit brightness ensure brilliant color display.

With compact dimensions of 64.5×117.7×1.6mm, this module is ideal for multifunctional intercom stations and handheld NFC Android POS terminals with printers.

Pin Assignment

Product Drawings

5-inch LCD Display Series

No.	Size	Part No.	LCD Type	Resolution	Outline Dimension	Active Area	Interface	Contrast Ratio	Brightness	Operation Temperature	Storage Temperature
1	5"	HC050IG25031-B04V01	IPS	800×480	120.7×75.8×2.9mm	108×64.8mm	40pinRGB	1000	250	-20~70℃	-30~80℃

Warm reminder: If models listed above can't meet your requirements, customization can be made according to your specific requirements including but not limited to LCM, RTP, CTP, driver board, etc.

Customization

Frequently Asked Questions

Q1. Can I have a sample order for LCD Display?

A: Yes, we welcome sample orders to test and check quality.

Q2. What about the lead time?

A: Usually 4-5 days for sample orders if goods are in stock, and 4-6 weeks for mass production (based on quantity and product).

Q3. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx.

Q4. How to proceed an order for LCD Display?

Let us know your requirements or application
We quote according to your requirements or our suggestions
Customer confirms the samples and places deposit for formal order
We arrange the production

Q5: Do you offer guarantee for the products?

A: Yes, we offer 1 year warranty for our products.

Q6: How to deal with the faulty?

A: Our products are produced under strict quality control with defective rate less than 0.2%. Besides damage caused by human factors, within one year warranty from shipping date. Special conditions may have separately notified warranty times.
